توضیحات

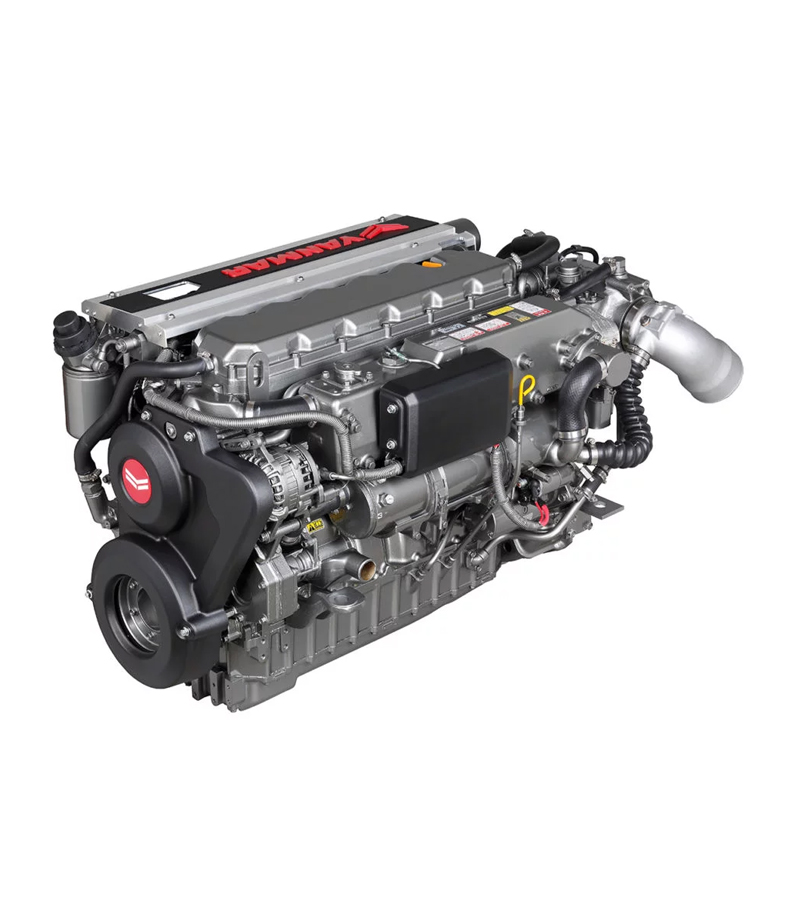

6LY400

400mhp/294kw

Specifications

294 kW / 400 mhp خروجی رتبه بندی شده Rated Output
3300 rpm سرعت رتبه بندی شده Rated Speed
5.813 L / 354 cu. in جابجایی Displacement
6 cylinders تعداد سیلندر ها No. of cylinders
106 mm x 110 mm / 4.17 in x 4.33 in سواخ سیلندر *ضربه Cylinder Bore x Stroke
Direct Injection, Denso Common Rail System سیستم احتراق Combustion system
Turbocharged & Intercooled تنفس Aspiration
12V – 125A دینام Alternator
585 kg / 1290 lbs وزن خشک بدون دنده Dry weight without gear
1440 mm x 748.5 mm x 773.8 mm ابعاد Dimensions
Electronic کنترول ها Controls
RCD 2 IMO Tier 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS گواهی Certifications

NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp

Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length measured with KMH61A-2 gearbox & high-riser elbow
(Dimensions may vary with other gears/elbow)
